AC 220V PCB X Ray Machine With 1536x1536 FPD And 60° Tilt Angle

Name: AC 220V PCB X Ray Machine With 1536x1536 FPD And 60 Tilt Angle
Brand: WELLMAN
Price: 1 USD

Brand Name : WELLMAN

Model Number : X6800M

Certification : CE, FDA

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Packaging Details : Wooden case

Operate System : Windows 10

Resolution : 1536*1536

Application : PCB inspection

Focus Spot Size : 5μm

Voltage : AC 220V

Tilt Detection Angle : 60°

X-Ray Tube : Closed Type

Max tube voltage : 90kv

Effective area : 130mm*130mm

Pixel size : 85μm

Max tube current : 200μA

Contact Now

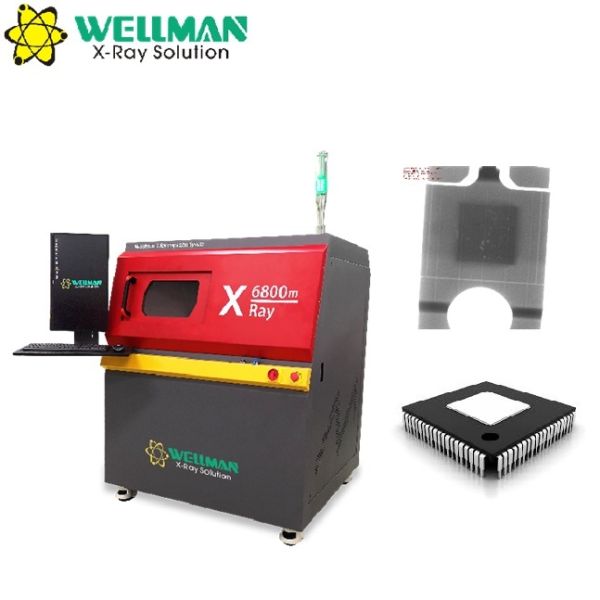

X6800M Electronic X-Ray Inspection System (WELLMAN):1536*1536 HD Resolution FPD + Radiation Safety Interlock + 2-Hour Quick Training

High-performance inspection system featuring Japan Hamamatsu X-ray tube (10000+ hours lifetime), 60° tiltable FPD, and 1500X high magnification capability.

Key Advantages

Speed-regulable 5-axis linkage system maintains image centering during tilting
Tailorable inspection procedures for automated batch testing
User-friendly interface requiring just 2 hours of training
60° tiltable FPD maintains magnification during inspection
Automatic navigation window - table moves to clicked position
430×430mm table with 15kg load capacity
Japan Hamamatsu X-ray tube - world's best closed type with 10,000+ hours lifetime (maintenance-free)
New generation 5" HD digital flat panel detector (FPD)

Hardware Specifications

X-ray Source
Brand	Japan Hamamatsu
Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat
Flat Panel Detector
Effective area	130mm×130mm
Pixel size	85μm
Resolution	1536×1536
Frame rate	20fps
Tiltable angle	60°
Table
Size	430mm×430mm
Detectable area	410mm×410mm
Max load	15kg
Equipment
Magnification	Geometry	150X
	System	1500X
Inspection speed	Max 3.0s/point
Dimensions	1220mm (L) × 1250mm (W) × 1600mm (H)
Weight	1250kg
Power supply	AC110-220V 50/60HZ
Max power	1500W
Industrial PC	I5 CPU, 4G RAM, 240GB SSD
Displayer	24" HDMI LCD

Software Functions

Basic Operations

Full keyboard and mouse control
Mouse-click X-ray control with real-time voltage/current display
Status bar shows interlock, pre-heat, and X-ray status
Adjustable image brightness, contrast and gain
Product list for saving and recalling inspection parameters
Navigation window for precise table positioning
Real-time motion axis coordinate display
Inspection results display with measurement data
Adjustable axis movement speeds (slow/normal/fast)

Voids Rate Measurement

Automatic calculation of voids rate, solder ball area, circumference
Adjustable grayscale threshold, pixel, contrast, and size filtering
Manual void addition via polygon or freehand drawing
Parameter saving for consistent product inspection

Measurement Functions

Distance measurement between points
Distance rate calculation for through-hole soldering
Angle measurement between defined points
Radius measurement for circular components
Perimeter measurement for square components

Automatic Inspection

Manual point setting for customized inspection positions
Array mode for regular inspection point patterns
Automatic feature recognition for characteristic inspection points

Safety Features

Radiation leakage: No leakage (≤1μSv/h, international standard)
Transparent lead glass observation window for safe internal viewing
Window and back door safety interlock - X-ray powers off when opened
Electromagnetic safety switch locks when X-ray is active
Emergency stop button located near operation position
Tube protection prevents leaving software without closing X-ray
